Leaf Video Distribution

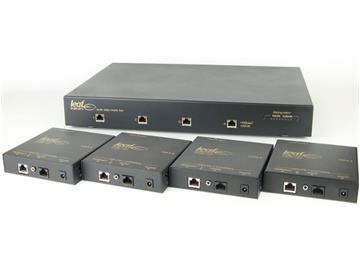

This 4 source to 4 zone matrix switch is capable of switching and distributing HDMI (3D, Video and Audio), IR, and RS232. Using HDBaseT “lite” as the medium, it requires a single Cat5e/Cat6 as the only cabling between the matrix and the zone with distances up to 230 feet (70 meters). The LTHDMI44P is easy to set-up utilizing leafs auto-EDID calibration system and features Leaf’s unique zone lock technology. Also, the LTHDMI44P includes (4) LB1’s (room breakout unit) providing everything you need in one box.

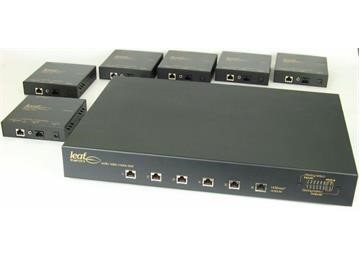

This 6 source to 6 zone matrix switch is capable of switching and distributing HDMI (3D, Video and Audio), IR, and RS232. Using HDBaseT “lite” as the medium, it requires a single Cat5e/Cat6 as the only cabling between the matrix and the zone with distances up to 230 feet (70 meters). The LTHDMI66P is easy to set-up utilizing leafs auto-EDID calibration system and features Leaf’s unique zone lock technology. Also, the LTHDMI66P includes (6) LB1’s (breakout unit) providing everything you need in one box.

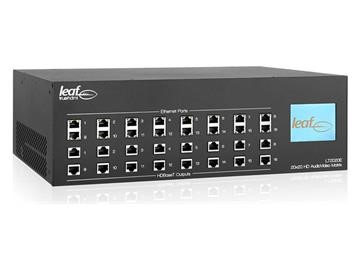

The Leaf 20x20 matrix switch is capable of distributing 20 HDMI (3D, Audio/Video) sources to 16 zones utilizing HDBaseT Technology. It also features 4 local HDMI outputs for in-rack or in-room end-points. In addition to HDMI, the LTHDMI2020E is also capable of distributing bi-directional RS232 & directional IR, Ethernet (10/100), and analog audio to any of the 16 zones. Stereo HDMI audio or digital audio (s/pdif) can be converted to analog and distributed via the pre-amped au­dio matrix switch to any zone throughout the system. Using HDBaseT as the medium, it requires a single Cat5e/Cat6 as the only cabling between the matrix and the zone with distances up to 328 feet (100 meters). It is also flexible enough to use the Leaf LTB1, LTB1E, LTBSR or LTB8 as room breakout units. The LTHDMI2020E is easy to set-up utilizing leafs auto-EDID calibration system and features Leaf’s unique zone lock technology.
